Hager MCCB B16 3-phase (3P+N) 6kA (MBN616E)
Description
Description

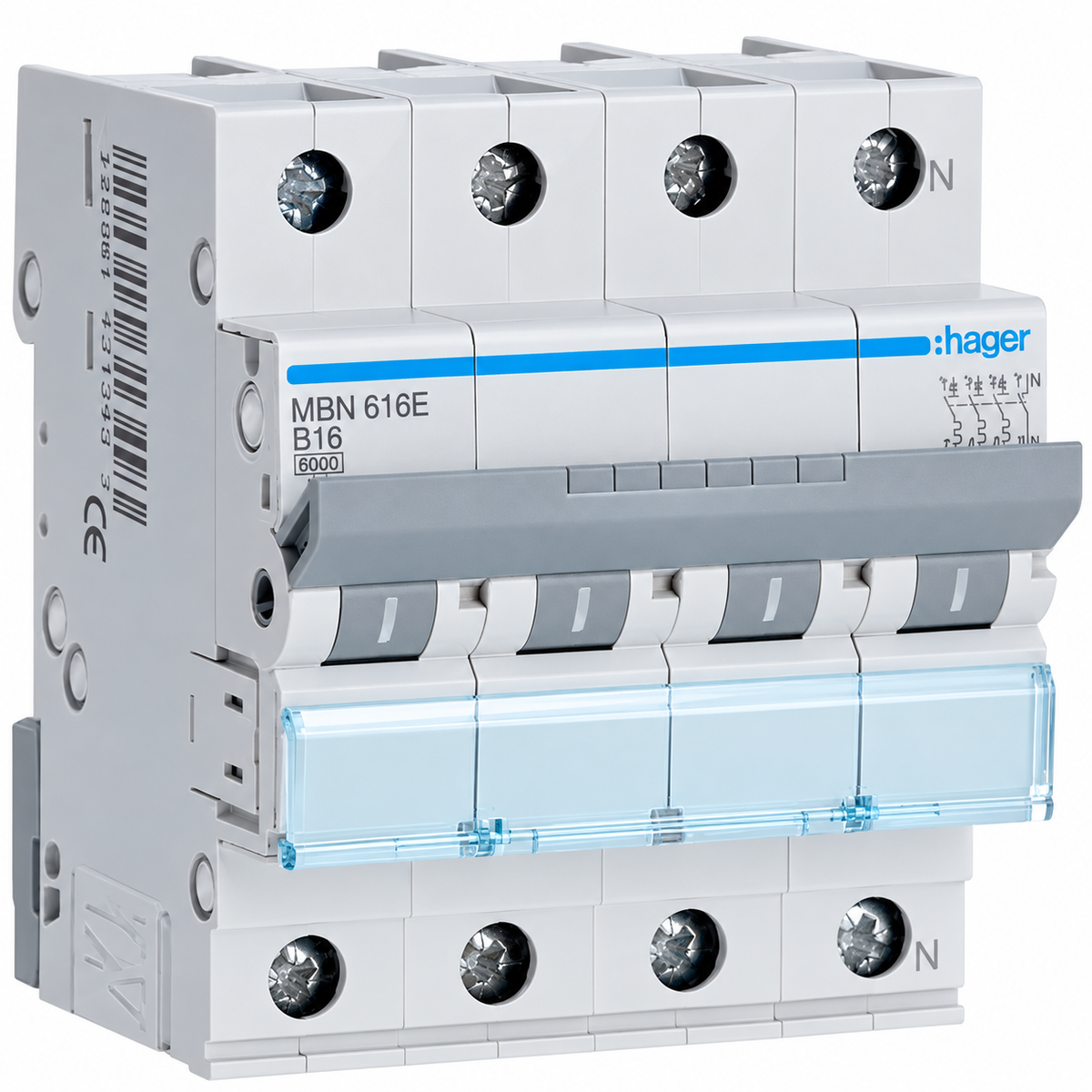

Hager MBN616E power circuit breaker – B16A 3P+N 6kA
Reliable protection for your three-phase installation starts with a suitable circuit breaker. The Hager MBN616E is a 3-pole circuit breaker with neutral, suitable for a rated current of 16A per phase. This power circuit breaker protects the connected electrical circuit against overload and short circuits.
The circuit breaker has a B characteristic and a short-circuit breaking capacity of 6kA. The linked operating lever switches the three phases and the neutral together. The four-module design fits neatly into a suitable distribution board.
Key benefits
- For three-phase installations: 3P+N version with 16A per phase.
- Protection against overload and short circuits.
- Simultaneous operation: linked operating lever for the phases and neutral.
- Practical connections: screw terminals at the top and Bi-Connect at the bottom.
- Neat installation: four modules wide.
Application
Suitable for three-phase electrical circuits requiring B16A protection. This includes suitable power connections and equipment in homes, workshops, and commercial spaces. For applications such as a heat pump, charging point, or inverter, the equipment's installation instructions determine which circuit breaker and additional protection are required.
Technical specifications
| Brand | Hager |
|---|---|
| Product number | MBN616E |
| Product type | Circuit breaker / power circuit breaker |
| Pole type | 3P+N – three phases and neutral |
| Rated current | 16A per phase |
| Tripping characteristic | B |
| Short-circuit breaking capacity | 6kA according to IEC 60898-1 |
| Rated voltage | 230–400V AC |
| Frequency | 50–60Hz |
| Number of modules | 4 |
| Top connection | Screw terminals |
| Bottom connection | Bi-Connect |
| EAN | 3250614313516 |
Installation and protection
This is a circuit breaker without built-in residual current protection. Coordinate the circuit breaker and any additional residual current protection with the connected equipment and installation. Have the installation carried out by a qualified electrician.
Order the Hager MBN616E from Jouw Kluswinkel for a professionally protected three-phase electrical circuit.
