Hager cooker centre B20 2P+2N (MKN598)

Hager MKN598 cooker circuit B20 – 2P+2N 2×20A 6kA

The Hager MKN598 cooker circuit is a circuit breaker for cooking installations designed for 2×20A. This version with two poles and two neutral conductors (2P+2N) protects the connected electrical circuits against overload and short circuits.

With a B characteristic and a short-circuit breaking capacity of 6kA, this cooker circuit provides suitable protection for compatible electrical cooking appliances. The screw terminals on the top and bottom ensure secure wiring.

Key benefits

• 2×20A: for cooking installations for which this current rating is required.
• 2P+2N version: two circuits, each with its own neutral.
• B characteristic: protection against overload and short circuits.
• 6kA short-circuit breaking capacity.
• Screw terminals top and bottom: for a reliable connection.

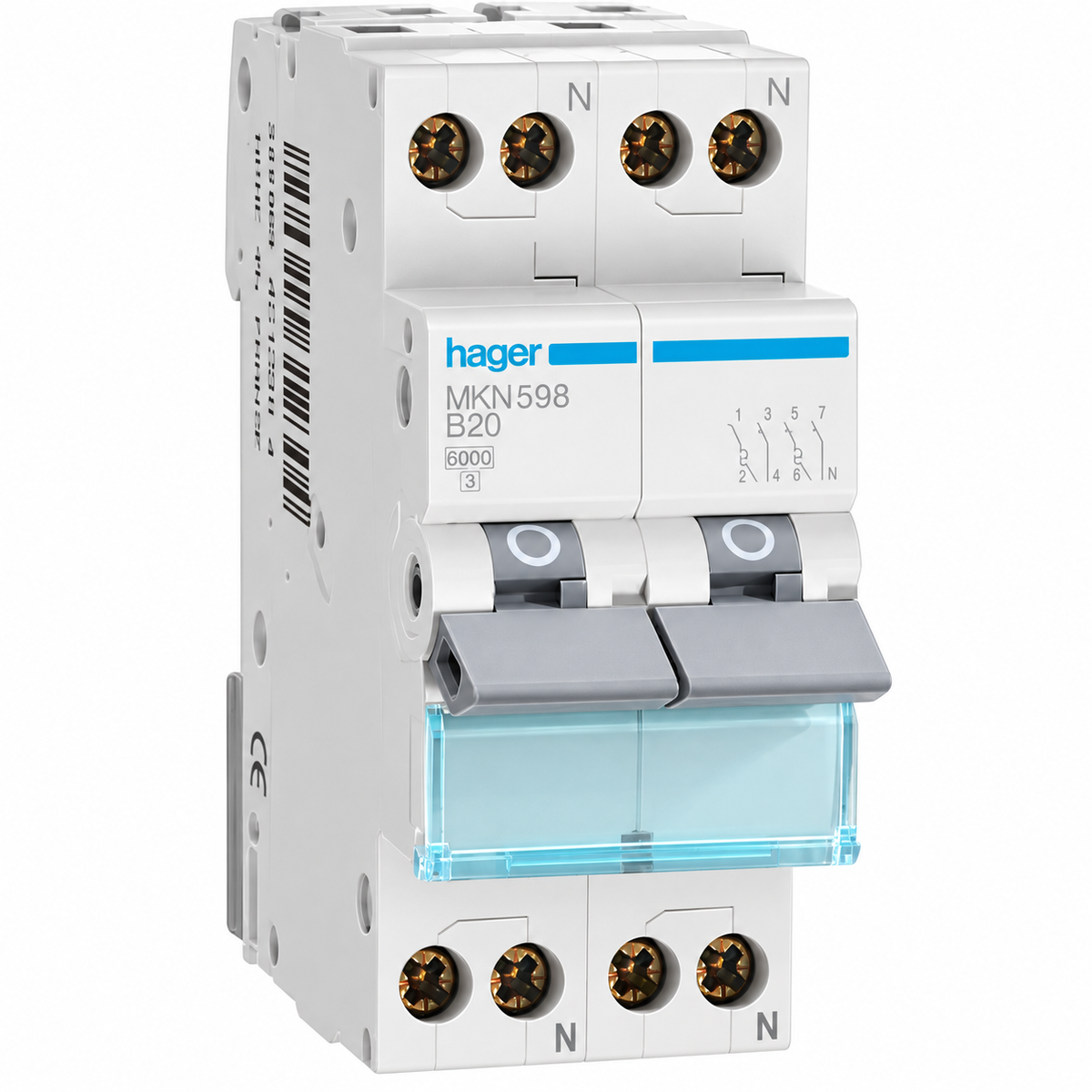

• Clear product marking: type MKN598 and B20 clearly visible on the front.

For electric cooking

This cooker circuit is suitable for an induction hob, ceramic hob or electric cooker whose wiring diagram allows a 2×20A connection. Check in advance which connection the appliance manufacturer requires and whether the existing installation is suitable for this.

Technical specifications

Installation and connection

The wiring, connection materials and any Perilex socket must be suitable for 20A. An existing 2×16A cooker circuit therefore cannot be replaced by this version without inspection. The Hager MKN598 does not have built-in residual current protection. Have the required protection and installation assessed and carried out by a qualified installer.

Order the Hager MKN598 cooker circuit B20 2P+2N from Jouw Kluswinkel for a properly protected cooking installation.
