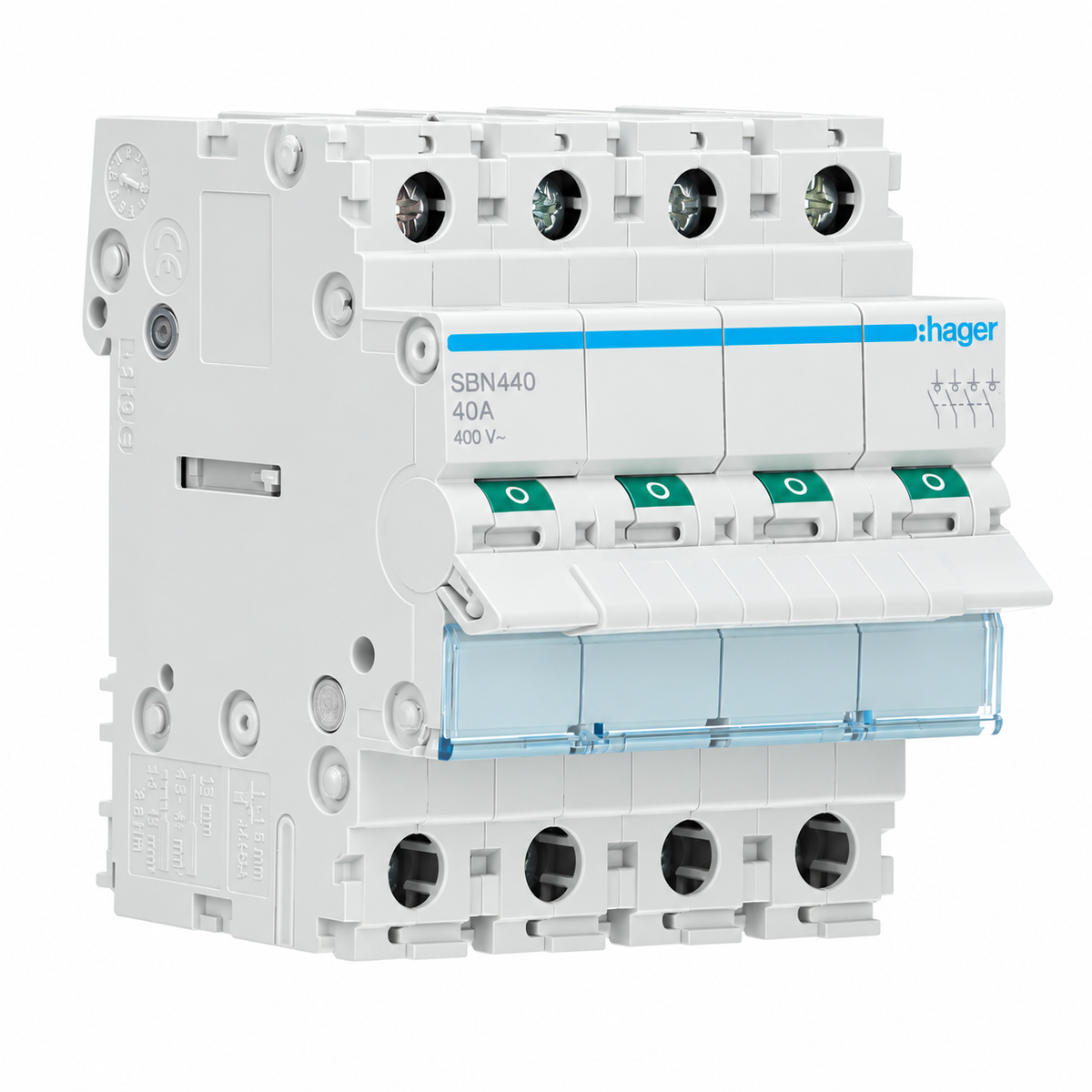

Hager SBN440 40A 4-Pole Main Switch
The Hager SBN440 40A 4-Pole Main Switch allows you to centrally switch a connected installation on and off. This modular load isolator is suitable for 400V AC and is used as a main switch in a suitable 3-phase consumer unit or distribution board.
The four linked contacts make it possible to switch three phases and the neutral together. With a width of 70 mm, equal to four modules, the Hager SBN440 fits neatly between the other modular components in the cabinet.
Benefits of the Hager SBN440
- 40A rated current: for installations designed for this.
- 4-pole version: operate four contacts together.
- For 3-phase consumer units: suitable for switching three phases and neutral.
- Modular design: four modules wide.
- Screw terminal connection: for a secure connection with the wiring.
- Clear operation: linked handle with visible position marking.
Main switch for your consumer unit
The Hager SBN440 is a practical choice when assembling, replacing, or modifying a suitable distribution device. Via a single control, you switch the connected power supply to the underlying installation part on or off. Always check the connection value and the layout of the installation when choosing.
Technical data
| Brand | Hager |
|---|---|
| Article number | SBN440 |
| Product type | Main switch / modular load isolator |
| Number of poles | 4P |
| Rated current | 40A |
| Rated voltage | 400V AC |
| Frequency | 50–60Hz |
| Number of modules | 4 |
| Dimensions (h × w × d) | 83 × 70 × 69 mm |
| Protection rating | IP20 |
| Number of make contacts | 4 |
What is the difference with an installation circuit breaker?
A main switch is intended for manually switching on and off and isolating an installation. The Hager SBN440 itself does not offer protection against overload, short circuit, or leakage current. For this, suitable installation circuit breakers, fuses, and possibly residual current protection are required.
Buy Hager main switch 40A
Order the Hager SBN440 4-Pole Main Switch 40A from Jouw Kluswinkel. A clear solution for the central operation of your suitable consumer unit or distribution board. Have the installation and inspection carried out by a qualified installer.
