Hager MCCB B20 3-phase (3P+N) 6kA (MBN620E)
Description
Description

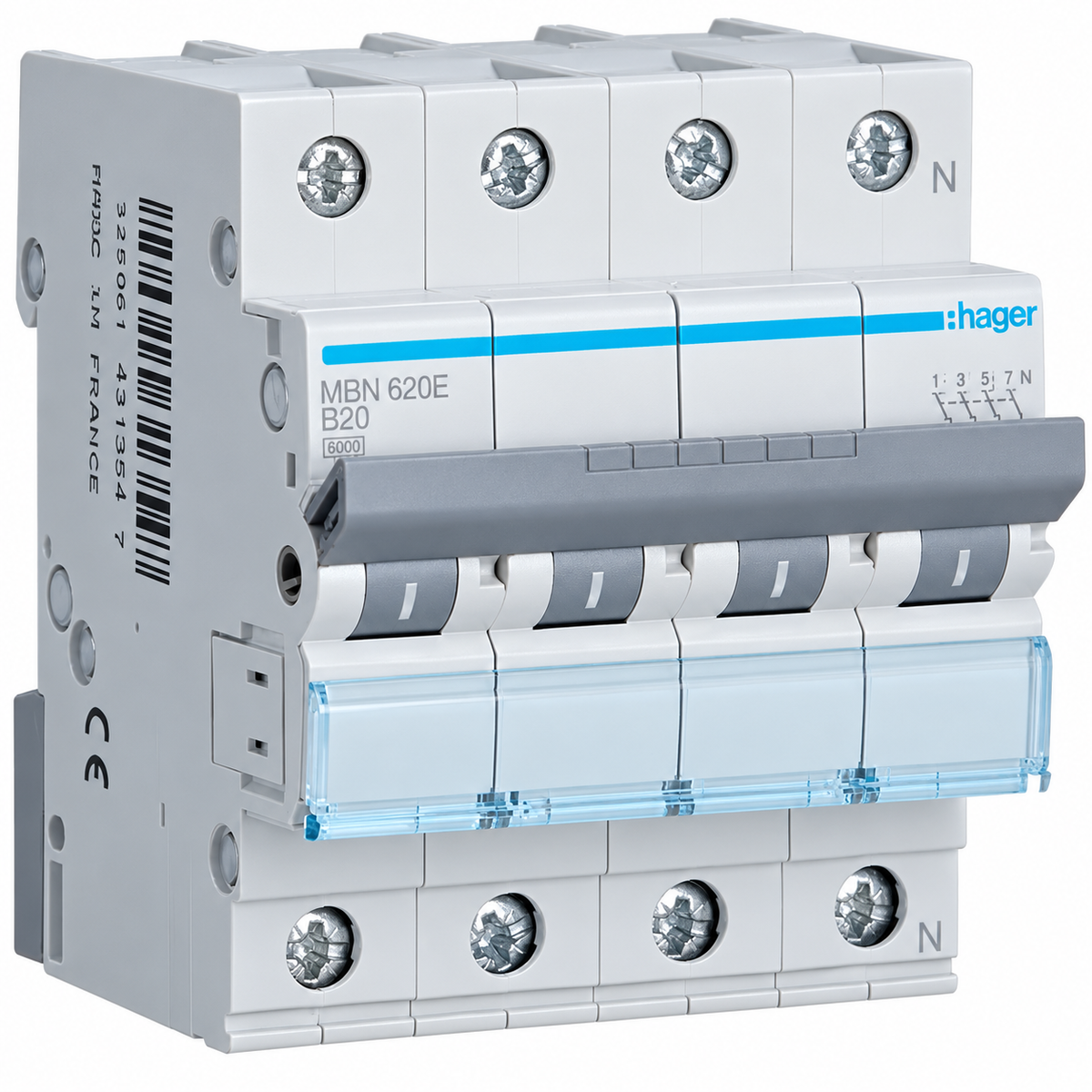

Hager MBN620E power circuit breaker – B20A 3P+N 6kA
The Hager MBN620E installation circuit breaker protects three-phase electrical circuits against overload and short circuits. This power circuit breaker is a 3-pole plus neutral (3P+N) model and has a rated current of 20A per phase. Suitable for installations requiring B20A protection.
The linked operating lever allows the three phases and the neutral to be switched together. Thanks to its four-module width and practical connection terminals, this circuit breaker can be easily installed in a suitable distribution board.
Key benefits
- Three-phase protection: 3P+N model with 20A per phase.
- B characteristic: protection against overload and short circuits.
- 6kA short-circuit breaking capacity according to IEC 60898-1.
- Linked operation: switches the three phases and neutral together.
- Practical connection: screw terminals on top and Bi-Connect on the bottom.
- Four modules wide: total installation width of 70 mm.
Application
This Hager power circuit breaker is suitable for appropriate three-phase installations in homes, workshops, and commercial spaces. When used for a heat pump, charging station, or inverter, for example, the current rating and tripping characteristic must match the equipment's installation requirements.
Technical specifications
| Brand | Hager |
|---|---|
| Product number | MBN620E |
| Product type | Installation circuit breaker / power circuit breaker |
| Pole type | 3P+N – three phases and neutral |
| Rated current | 20A per phase |
| Tripping characteristic | B |
| Short-circuit breaking capacity | 6kA according to IEC 60898-1 |
| Rated voltage | 230–400V AC |
| Frequency | 50–60Hz |
| Number of modules | 4 |
| Dimensions (h × w × d) | 83 × 70 × 70 mm |
| Top connection | Screw connection |
| Bottom connection | Bi-Connect |
| EAN | 3250614313523 |
Installation and protection
This installation circuit breaker does not have built-in residual current protection. Coordinate the wiring, connected equipment, and any additional residual current protection with the installation. Have installation and inspection carried out by a qualified installer.
Order the Hager MBN620E power circuit breaker from Jouw Kluswinkel to protect your three-phase installation.
