Hager circuit breaker B25 3-phase (4P) 6kA (MBN625E)
Description
Description

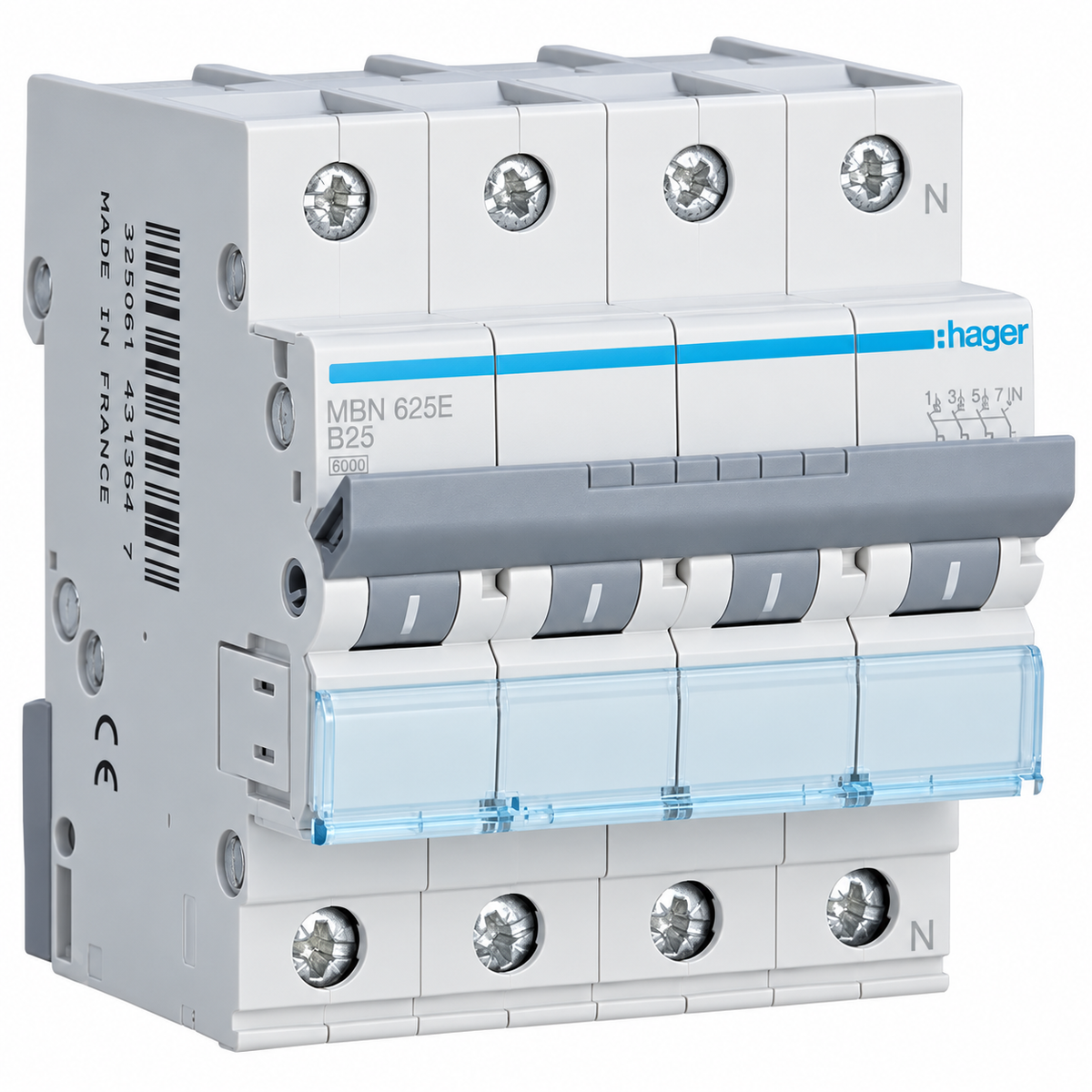

Hager MBN625E power circuit breaker B25A 3P+N 6kA
The Hager MBN625E B25A 3P+N installation circuit breaker protects three-phase electrical circuits against overload and short circuits. This power circuit breaker has a rated current of 25A per phase and is suitable for installations for which a B characteristic is required.
The linked operating lever switches the three phases and neutral together. The circuit breaker takes up four modules and has a short-circuit breaking capacity of 6kA according to IEC 60898-1.
Key benefits
- 3-pole with neutral: for suitable three-phase electrical circuits.
- 25A per phase: protection for a correspondingly sized installation.
- B characteristic: protection against overload and short circuits.
- Common operation: linked lever for three phases and neutral.
- Practical connections: screw connection at the top and Bi-Connect at the bottom.
- Compact and clear: four modules, 70 mm wide.
Installation circuit breaker for a 3-phase distribution board
This Hager B25 power circuit breaker is suitable for use in suitable distribution boards and consumer units in homes, workshops, and commercial spaces. When selecting the circuit breaker, the connected load, cable cross-section, installation method, and upstream protection are determining factors.
Do you want to connect a heat pump, charging station, or inverter? Then check which current rating, tripping characteristic, and additional protection the device manufacturer prescribes.
Technical specifications
| Brand | Hager |
|---|---|
| Item number | MBN625E |
| Product type | Installation circuit breaker / power circuit breaker |
| Pole type | 3P+N – three phases and neutral |
| Rated current | 25A per phase |
| Tripping characteristic | B |
| Short-circuit breaking capacity | 6kA according to IEC 60898-1 |
| Rated voltage | 230–400V AC |
| Frequency | 50–60Hz |
| Number of modules | 4 |
| Dimensions (h × w × d) | 83 × 70 × 70 mm |
| Top connection | Screw connection |
| Bottom connection | Bi-Connect |
| Protection rating | IP20 |
| EAN | 3250614313530 |
Is this an RCD circuit breaker?
No, the Hager MBN625E is an installation circuit breaker without built-in RCD protection. Where RCD protection is required, it must be provided separately. Have the choice and installation coordinated with the electrical installation by a qualified electrician.
Buy Hager MBN625E power circuit breaker
Order the Hager MBN625E B25A 3P+N installation circuit breaker from Jouw Kluswinkel for the protection of a suitable three-phase electrical circuit.
